Technical Parameters
|
Model
|
DM-125
|
|
|
Optical System
|
Finite Optical System
|
√
|
|
Eyepiece
|
WF10X/18
|
√
|
|
Viewing Head
|
Monocular Head Inclined at 30°
|
|
|
Seidentopf Binocular Viewing Head Inclined at 30°,
Interpupillary 48~78mm |
√
|
|
|
Seidentopf Trinocular Viewing Head Inclined at 30°,
Interpupillary 48~78mm |
||
|
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi
|
||
|

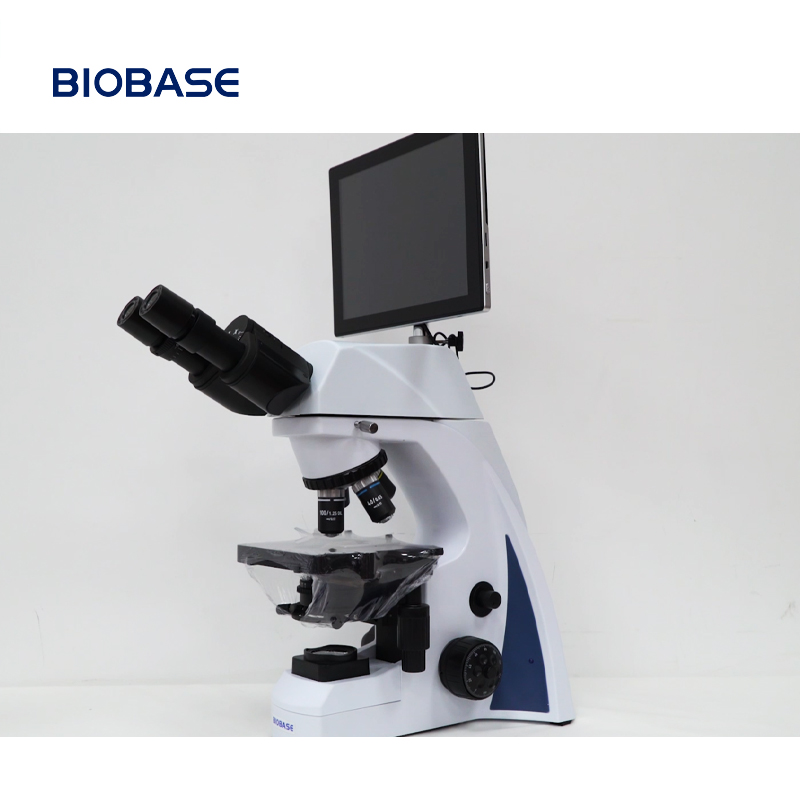

Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS
|
||
|
Achromatic Objective
|
4X N.A=0.1 WD=17
|
√
|
|
10X N.A=0.25 WD=7
|
√
|
|
|
40X N.A=0.65 WD=0.53
|
√
|
|
|
100X N.A=1.25 WD=0.13
|
√
|
|
|
Nosepiece
|
Backward Quadruple Nosepiece
|
√
|
|
Stage
|
Double Layers Mechanical Stage 140x140mm, Moving Range 75x50mm
|
√
|
|
Condenser
|
NA 1.25 Abbe Condenser
|
√
|
|
Dark Field Condenser (Dry, Oil)
|
||
|
Focusing System
|
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,
Moving Division 25mm |
√
|
|
Illumination
|
S-LED Illumination
|
|
|
S-LED Illumination with Recharger
|
√
|
|
|
Kohler Illumination
|
||
|
ECO Function
|
||
|
Plane-cancave Mirror
|
||
|
Fluorescent Attachment
|
Fluorescent Illumination, LED Lamp
|
|
|
Fluorescent Illumination, 100W HBO Lamp
|
||
|
Power Supply
|
AC110/220V±10%,50/60Hz
|
√
|
|
Accessories
|
Polarization Set
|
|
|
Phase Contrast Kit
|
||
|
Optional Accessories
|
LED/LCD Screen,camera
|
|
|
Gross Weight
|
8.5kg
|
√
|
