Lead Time: 3-4 Weeks

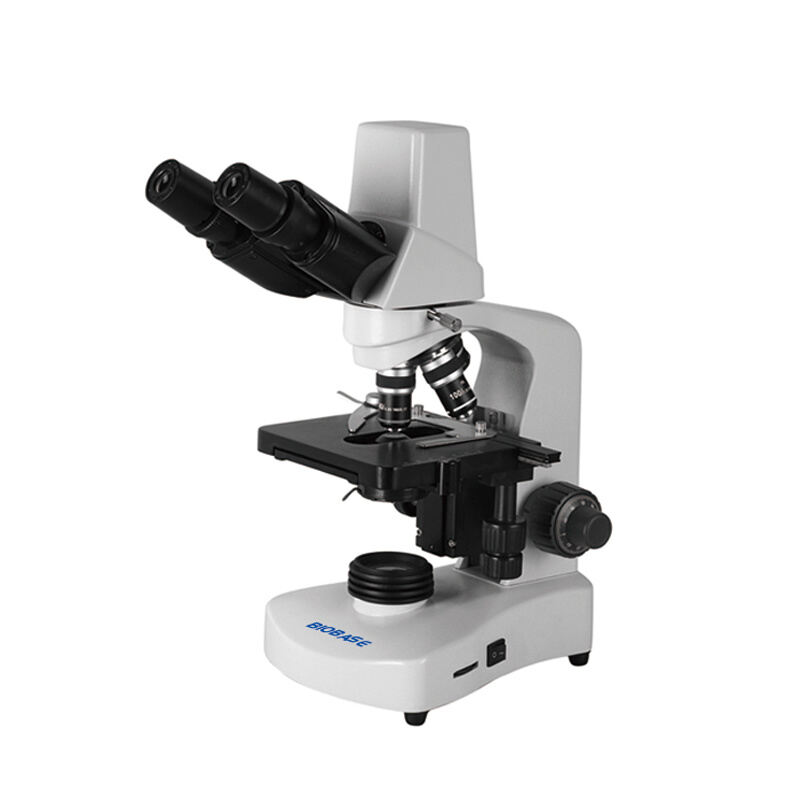

Specification of Microscope
| Â Model |
BMB-117M |
BMB-300M |
|||
| Viewing Head | Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm | √ | |||
| Camera System |
Valid Pixel |
1280×1024(1.3M Pixel) |
√ | ||
| Output Mode | USB2.0 | √ | |||
| Operation System | WINDOWS7/8 2000 / XP/ VISTA | √ | |||
| Software | ScopeImage 9.0 | √ | |||
| Range of Viewing Field | 90% | √ | |||
| Built-in 3M pixel digital camera with Software ScopeImaage 9.0 Siedentopf binocular head,30°inclined,interpupillary distance 48-75mm |
√ | ||||
| Eyepiece | WF10×/ 18 | √ | √ | ||
| P16×/ 11 | √ | ||||
| Extra wide filed eyepiece EW10×/ 20 with diopter adjustment |
√ | ||||
| Objective | Achromatic Objective 4×,10×,40×,100× | √ | √ | ||
| Nosepiece | Backward Quadruple Nosepiece | √ | |||
| Quadruple Nosepiece | √ | ||||
| Stage | Double Layers Mechanical Stage 132×142mm,Moving range 75×40mm | √ | |||
| Double Layers Mechanical Stage 140×140mm Moving range 75×40mm | √ | ||||
| Condenser | Abbe NA1.20 with Iris Diaphragm & Fliter | √ | |||
| Abbe NA1.25 sliding-in centerable condenser | √ | ||||
| Focusing | Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm | √ | |||
| Coaxial Coarse & Fine Adjustment System, Range 20mm, | √ | ||||
| Illumination | LED 3W,Brightness Adjustable | √ | |||
| Halogen Lamp 6V/ 20W,Brightness Adjustable | √ | ||||
|
220V or 110V/ 6V/ 20W Halogen Lamp, Brightness Adjustable. |
√ | ||||
| Accessories |
 Phase Contrast Kit |
√ | √ | ||
|  Dark-Field Attachment | √ | √ | |||
|  Polarization Attachment | √ | ||||
| Package Size | 396*262*492(BMB-117M), 334X334X533(BMB-300M) | √ | √ | ||
| Gross Weight | 7.5kg (BMB-117M), 12.5kg (BMB-300M) | √ | √ | ||
